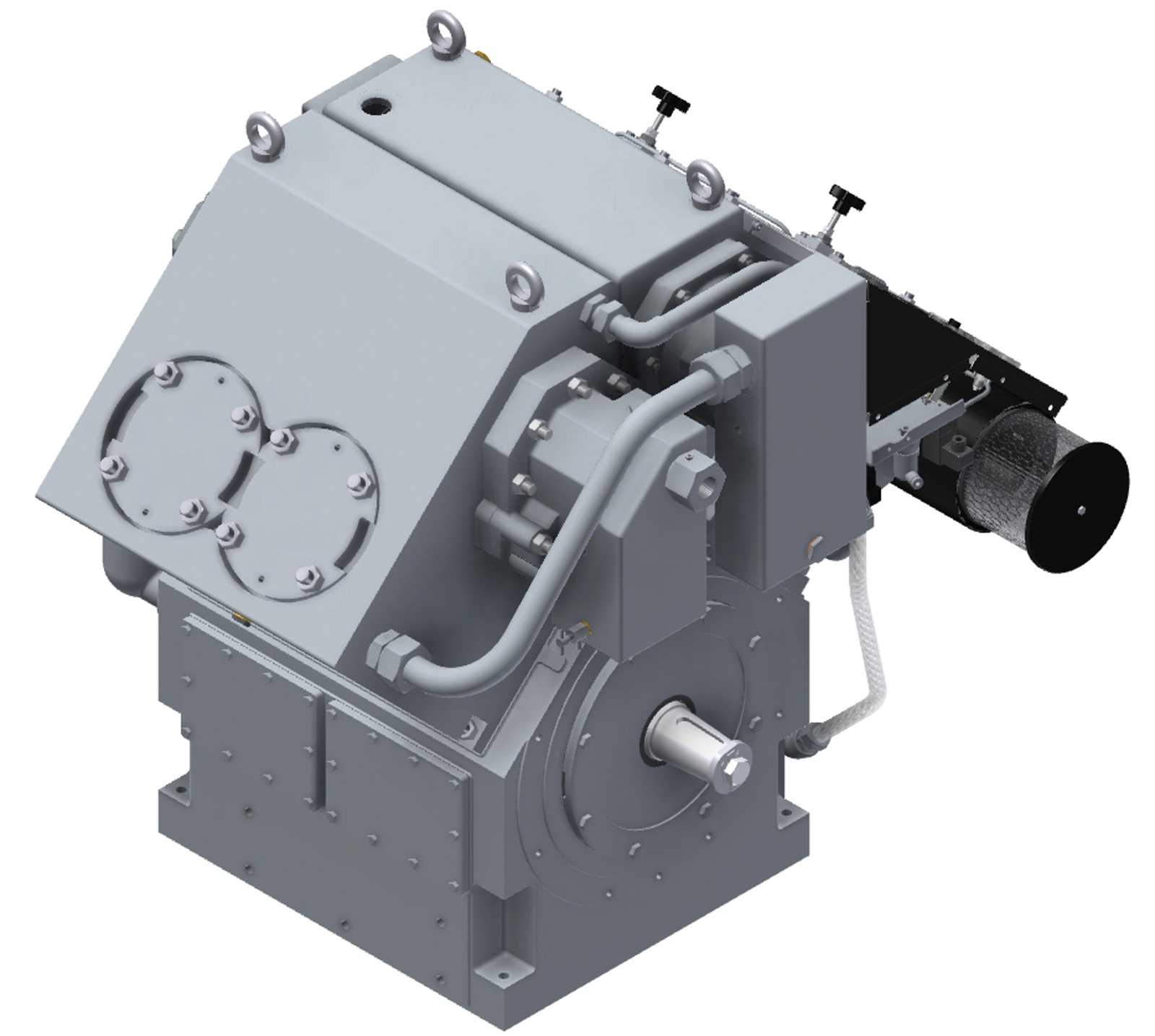

5236 - bare block

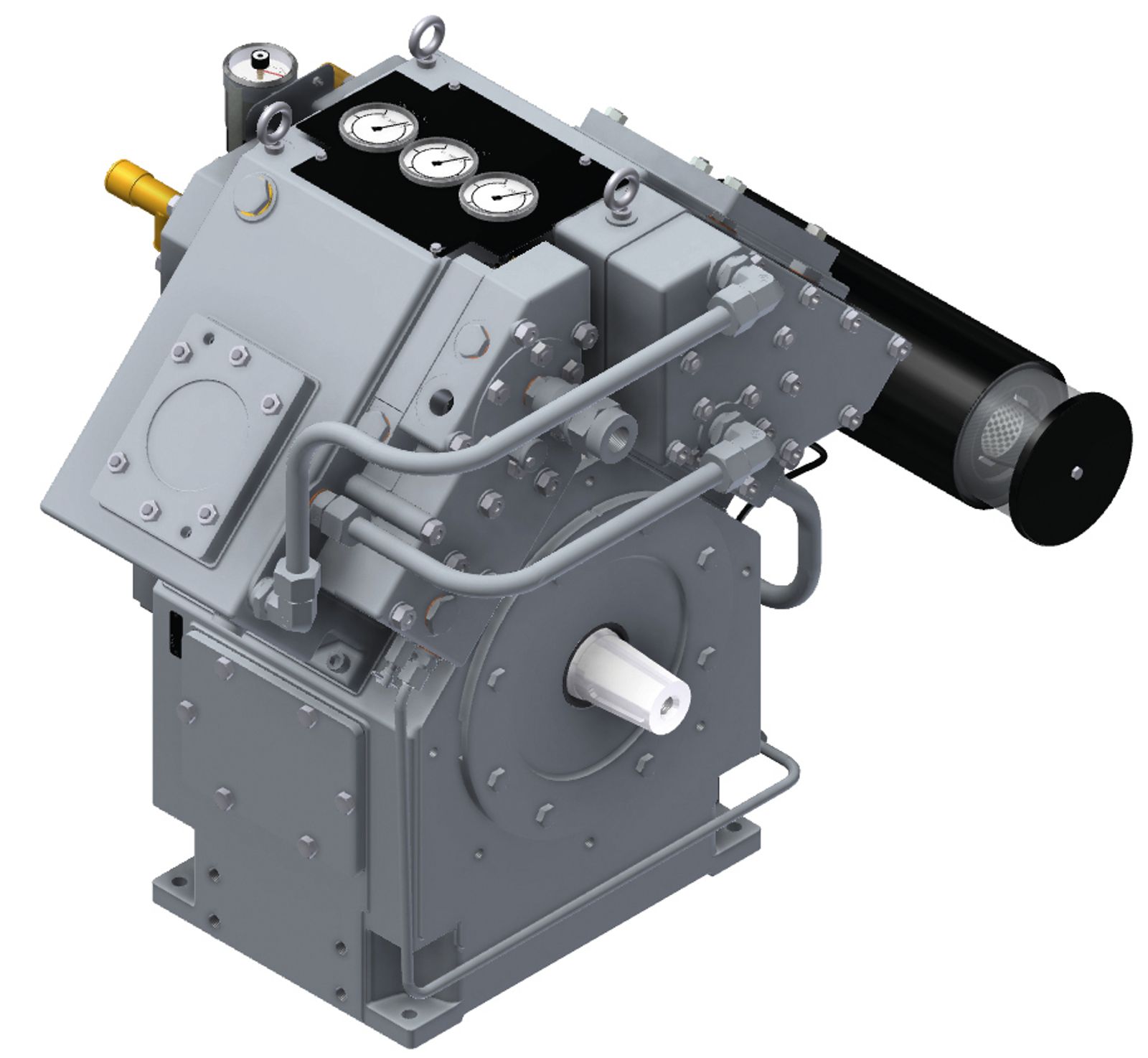

5212 - bare block.

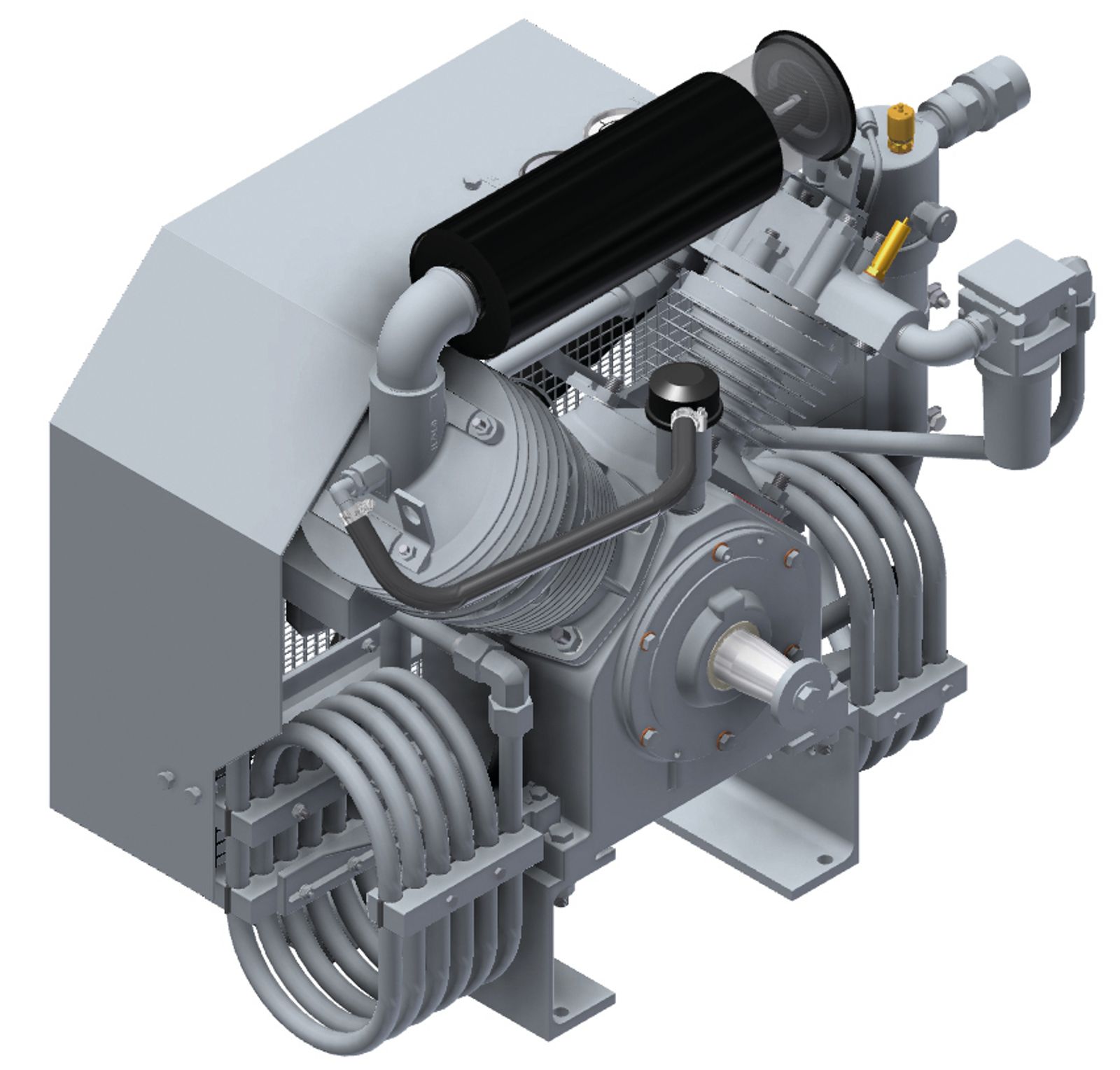

5211 - bare block
5217 - high pressure compressor
5213 - bare block

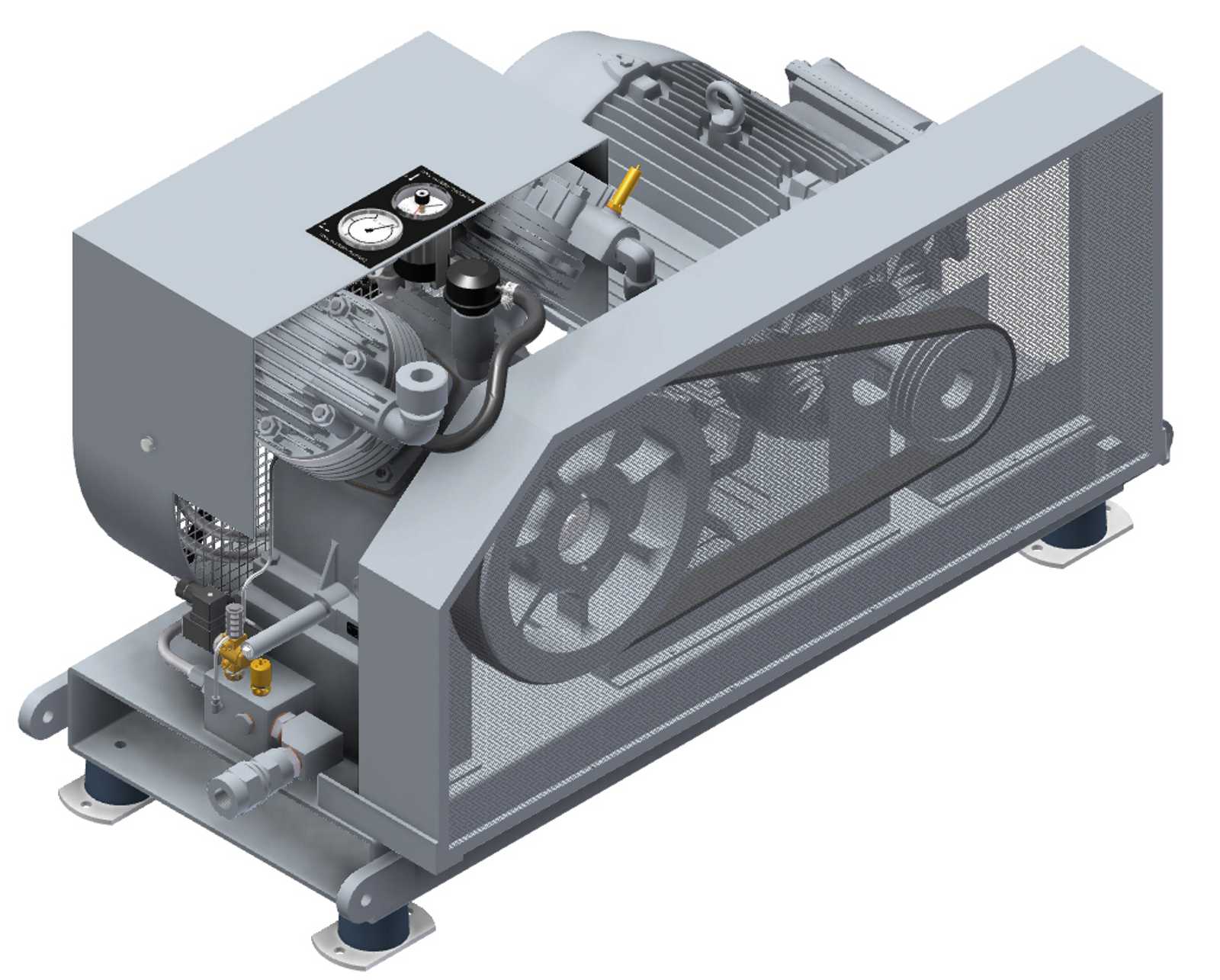

5209 - belt drive

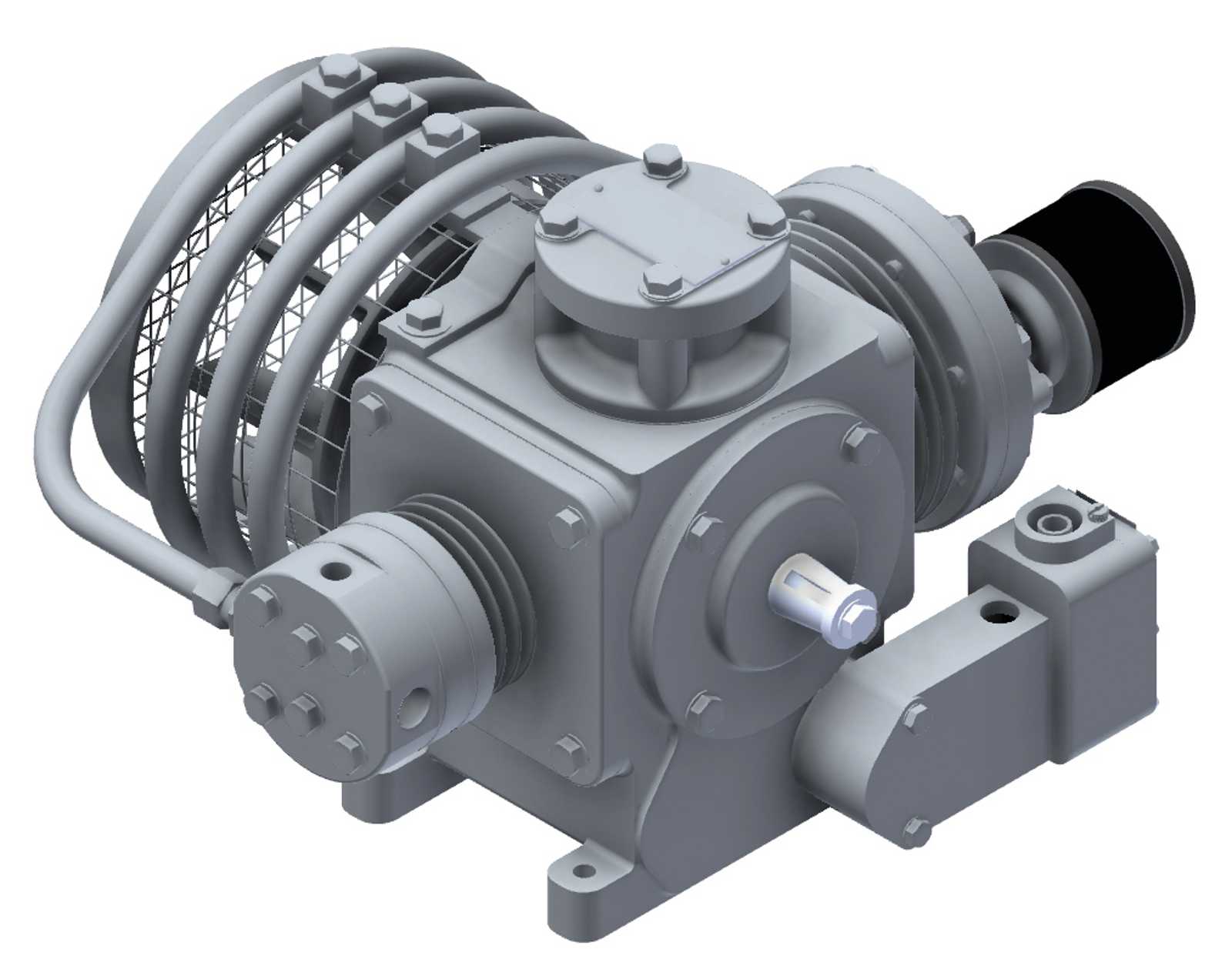

5204 - bare block

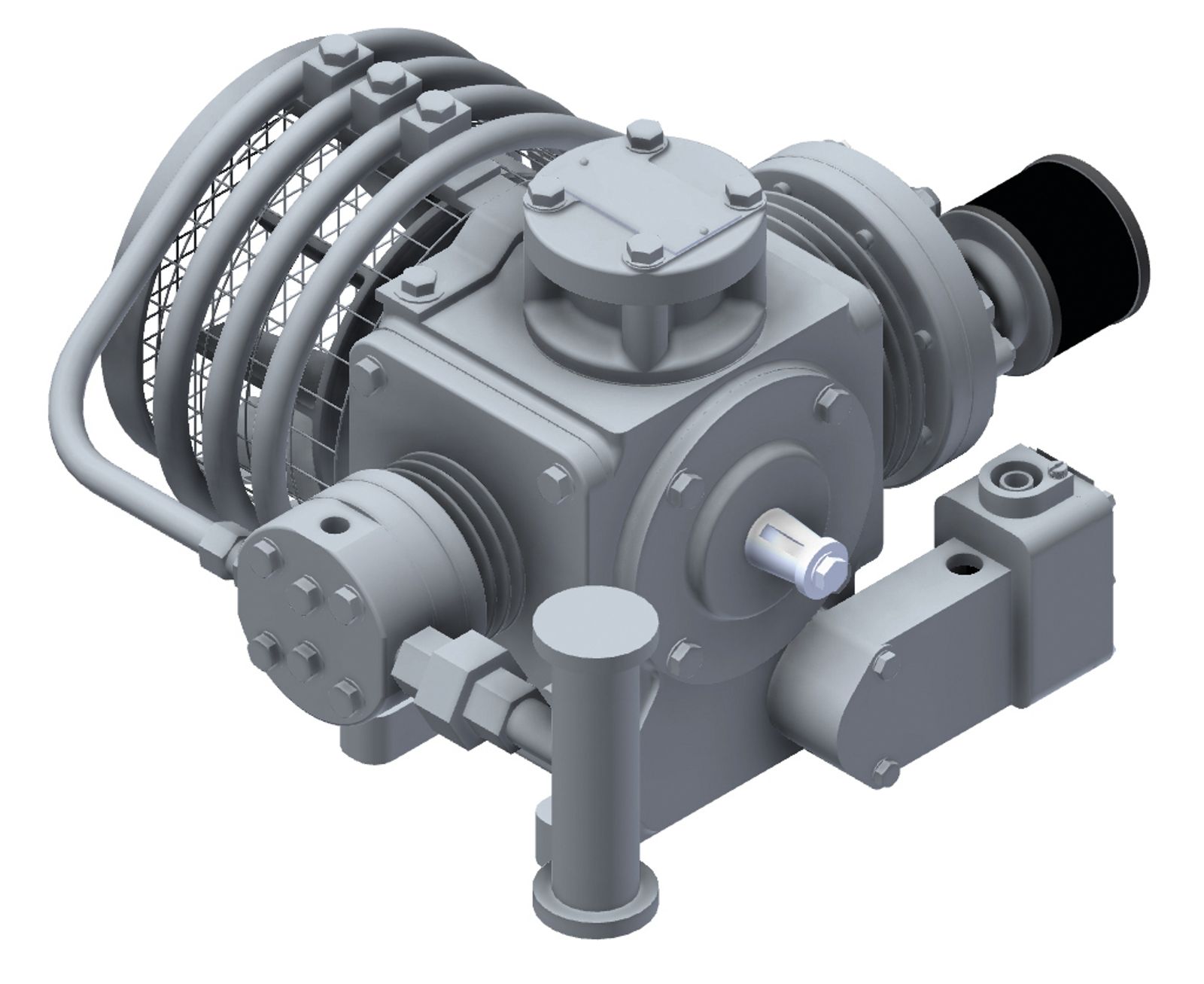

5205 - bare block

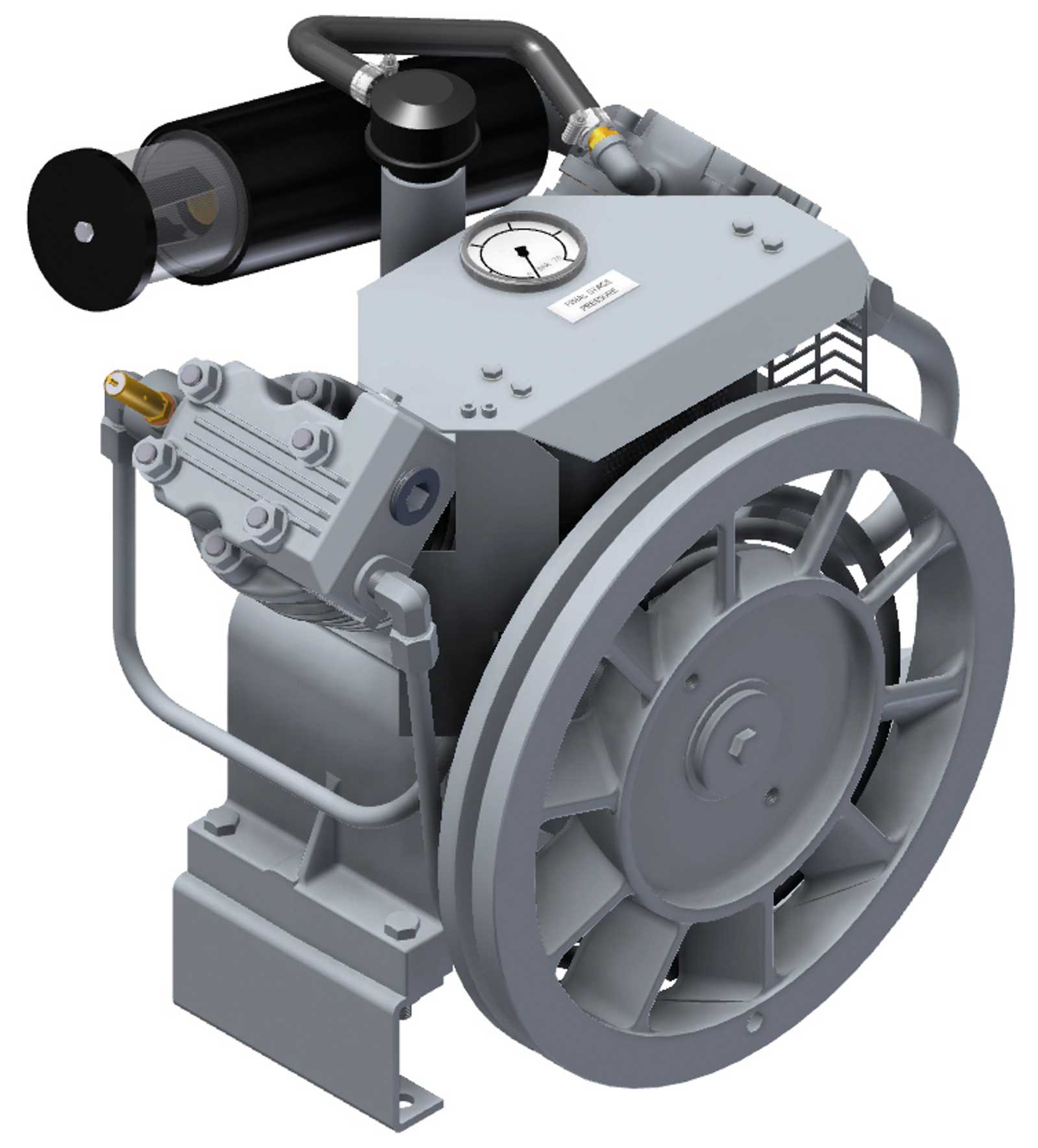

5207 - bare block.

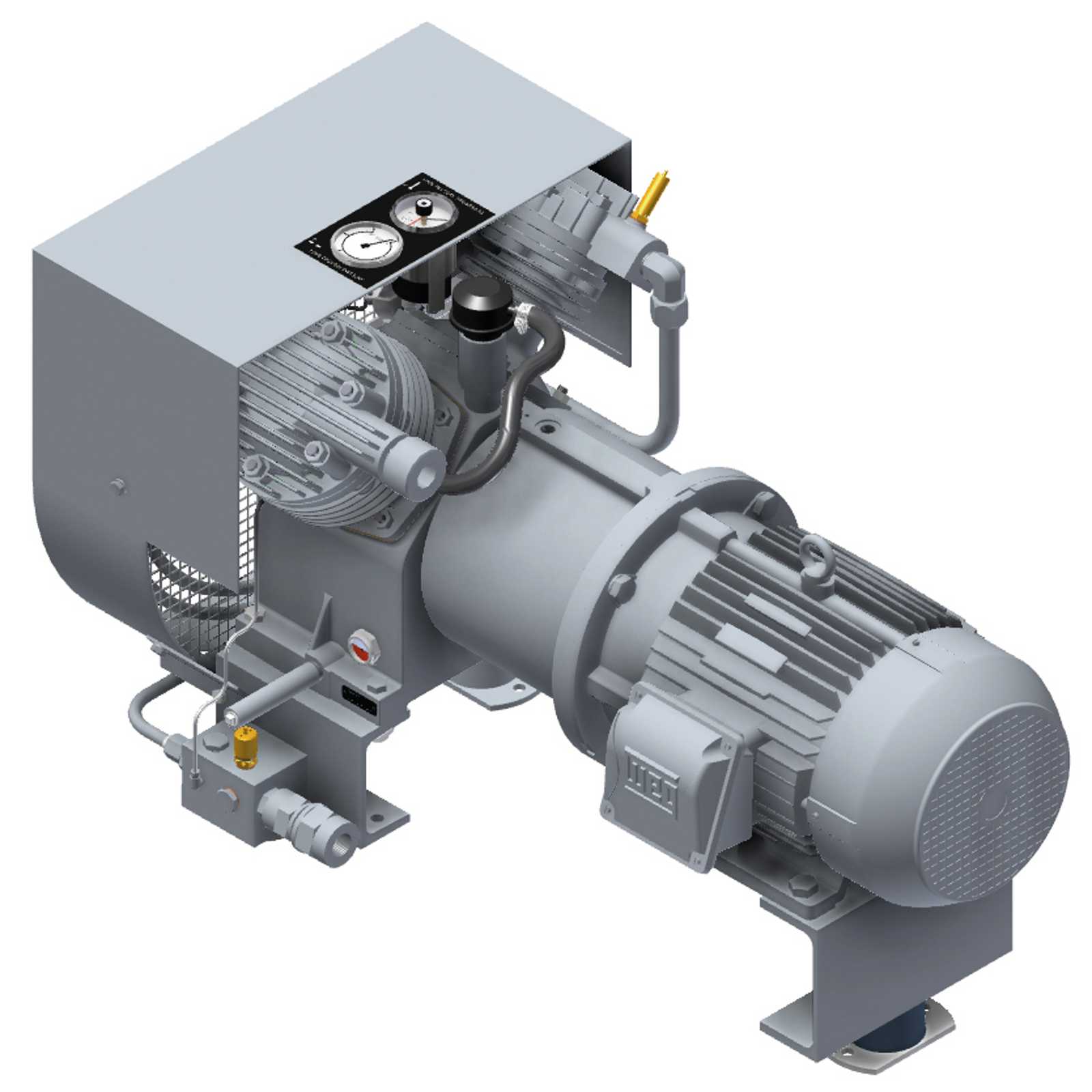

5209 - direct drive
5209 - bare block
Back to the product list

5200 Reciprocating Compressor

The Reavell 5200 series compressors are designed to deliver exceptional performance in high-pressure air and gas compression applications. Engineered with precision, these compressors ensure reliability and efficiency, making them ideal for industries that demand consistent and robust operation. The 5200 series integrate seamlessly into various systems, providing versatile solutions for modern industrial needs.

Product Comparison Table

Model

Barg (min)

Barg (max)

M³ /HR (min)

M³ /HR (max)

Lubrication

Cooling

Best for

5204

16

40

3

7

Lubricated

Air

Small-scale engine start systems, Laboratory autoclaves, Component testing with low flow requirements

5205

16

50

6

16

Lubricated

Air

Small-scale engine start systems, Laboratory autoclaves, Component testing with low flow requirements

5207

16

40

12

28

Lubricated

Air

Air blast switchgear, Circuit board manufacturing, Medium-sized autoclaves,

5209

16

40

24

43

Lubricated

Air

Air blast switchgear, Circuit board manufacturing, Medium-sized autoclaves,

5211

20

45

24

63

Lubricated

Air

Gas boosting (e.g., nitrogen), Electrical component manufacturing, High-pressure testing systems

5212

10

35

22

64

Lubricated

Water

Gas boosting (e.g., nitrogen), Electrical component manufacturing, High-pressure testing systems

5213

16

31

27

67

Lubricated

Air

Gas boosting (e.g., nitrogen), Electrical component manufacturing, High-pressure testing systems

5217

10

40

51

153

Lubricated

Water

Industrial gas transfer, High-capacity autoclaves, Energy sector applications

5236

10

40

184

313

Lubricated

Water

Large-scale gas boosting, Process gas compression, Custom industrial systems

Dimensions

Bare Block

Model

Height (mm)

Width (mm)

Lenght (mm)

Weight (kg)

5204

265

430

320

25

5205

330

530

390

45

5207

540

420

370

65

5209

540

520

470

86

5211

750

635

500

125

5212

770

850

645

380

5213

750

635

500

118

5217

810

860

810

464

5236

1020

1230

990

1100

Direct Drive

Model

Height (mm)

Width (mm)

Lenght (mm)

Weight (kg)

5204

340

480

950

102

5205

430

535

970

140

5207

-

-

-

-

5209

595

625

1045

210

5211

825

860

1230

320

5212

770

860

1220

500

5213

810

660

1140

330

5217

770

860

1470

680

5236

1050

1210

1800

1400

Belt Drive

Model

Height (mm)

Width (mm)

Lenght (mm)

Weight (kg)

5204

-

-

-

-

5205

-

-

-

-

5207

680

1025

540

275

5209

905

1200

625

300

5211

875

1430

760

420

5212

790

1310

715

630

5213

750

1280

800

630

5217

770

1290

870

731

5236

1065

1760

970

1400

The Performance and dimension information listed is for indication purposes only. Each compressor block can be configured to meet specific application criteriaand so a different compressor maybe suited for your requirements. The maximum and minimum performace data are not linked, for example, the figures listed shown the maximum flow avaliable from the machine, but not at the maximum pressure

Reavell 5204 Compressor

  • 2 stage Air Cooled
  • Max Flow: 7 m³/h
  • Outlet Pressure: Up to 40 barg
  • Power: 2 kW
  • Quick to install and simple to configure

Reavell 5205 Compressor

  • 2 stage lubricated air cooled Compressor
  • Max Flow: 16 m³/h
  • Outlet Pressure: Up to 40 barg
  • Power: 4 kW
  • Offering reduced war, excellent reliability, longer life and simple maintenance.

Reavell 5207 Compressor

  • 2 stage lubricated air cooled Compressor
  • Max Flow: 28 m³/h
  • Outlet Pressure: Up to 40 barg
  • Power: 8 kW

This compressor can manage a wide variety of gases. Typical gases are industrial air, helium, hydrogen, methane, natural gas, heliox and nitrogen

Reavell 5209 Compressor

  • 2 stage lubricated air cooled Compressor
  • Max Flow: 43 m³/h
  • Outlet Pressure: Up to 40 barg
  • Power: 11 kW

This compressor can manage a wide variety of gases. Typical gases are industrial air, helium, hydrogen, methane, natural gas, heliox and nitrogen

Reavell 5211 Compressor

  • 2 stage lubricated air cooled industrial compressor
  • Max Flow: 63 m³/h
  • Outlet Pressure: Up to 45 barg
  • Power: 15 kW

Quick to install and simple to configure to your site and user requirements.

Reavell 5212 Compressor

  • 2 stage water cooled.
  • Max Flow: 64 m³/h
  • Outlet Pressure: Up to 35 barg
  • Power: 15 kW

This compressor can manage a wide variety of gases. Typical gases are industrial air, argon, bio-gas, carbon dioxide, helium, hydrogen, methane, natural gas, nitrogen, heliox and sludge gas.

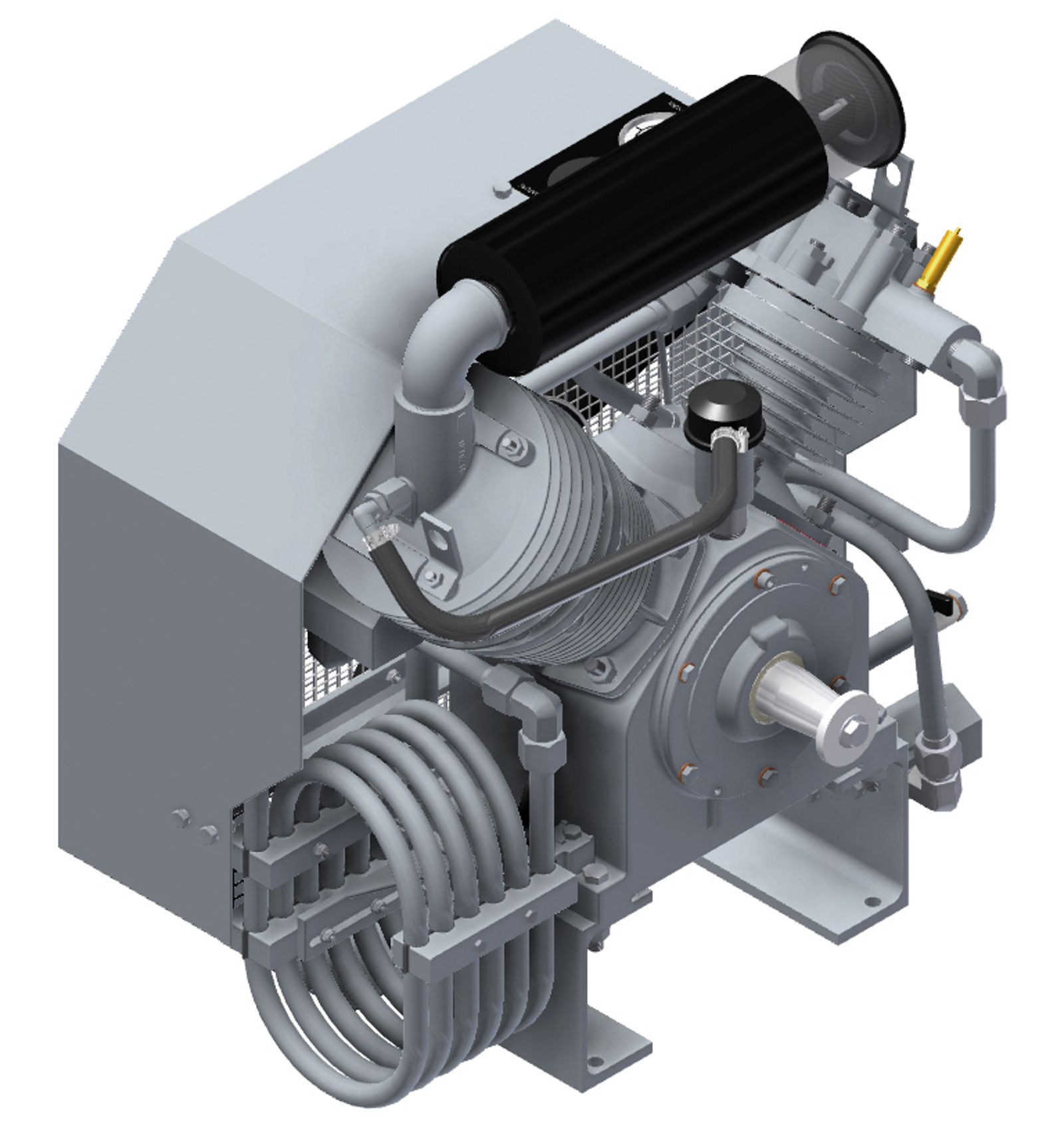

Reavell 5213 Compressor

  • 2 stage lubricated air cooled compressor
  • Max Flow: 67 m³/h
  • Outlet Pressure: Up to 31 barg
  • Power: 15 kW

Forced air interstage and final stage cooling ensuring no requirement for additional after coolers increasing life expectancy of compressors

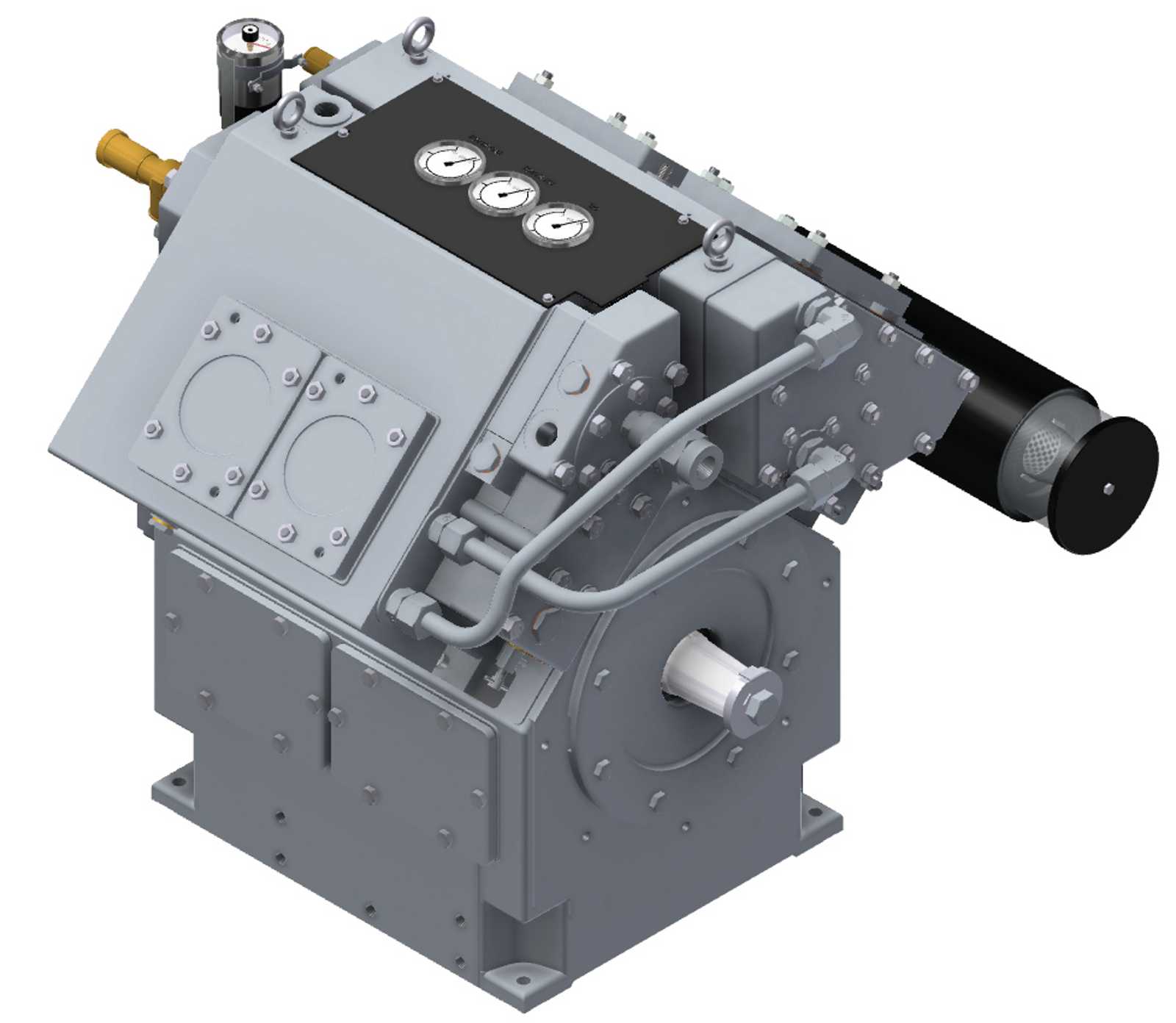

Reavell 5217 Compressor

  • 2 stage water cooled.
  • Max Flow: 153 m³/h
  • Outlet Pressure: Up to 40 barg
  • Power: 30 kW

This compressor can manage a wide variety of gases. Typical gases are industrial air, argon, bio-gas, carbon dioxide, helium, hydrogen, methane, natural gas, nitrogen, heliox and sludge gas.

Reavell 5236 Compressor

  • 2 stage water cooled.
  • Max Flow: 313 m³/h
  • Outlet Pressure: Up to 40 barg
  • Power: 75 kW

This compressor can manage a wide variety of gases. Typical gases are industrial air, argon, bio-gas, carbon dioxide, helium, hydrogen, methane, natural gas, nitrogen, heliox and sludge gas.

Can be installed in a range of industrial or marine environments.
