5400 Reciprocating Compressor

The Reavell 5400 Series Reciprocating Compressors are engineered for high-pressure industrial applications, offering exceptional performance and reliability. With a heritage of technical excellence, Reavell has designed these compressors to integrate effortlessly with various systems, ensuring minimal downtime and maximum efficiency.

Product Comparison Table

Model	Barg (min)	Barg (max)	M³ /HR (min)	M³ /HR (max)	Lubrication	Cooling	Best for
5404	85	350	5	8	Lubricated	Air	Small-scale gas storage, Component testing
5405	85	350	7	11	Lubricated	Air	Laser cutting systems, Small CNG stations
5405e	85	350	8	17	Lubricated	Air	Energy-efficient operations, OEM integrations
5407	140	414	12	27	Lubricated	Air	Medium-sized gas storage, Industrial testing labs
5409	140	414	20	44	Lubricated	Air	CNG vehicle refueling, Laser cutting with high duty cycles
5417	140	350	25	68	Lubricated	Water	High-volume gas compression, Process gas systems
5420	160	350	44	84	Lubricated	Water	Gas recovery systems, Advanced manufacturing
5437	160	414	62	159	Lubricated	Water	Large-scale CNG stations, Energy sector applications
5442	120	350	139	280	Lubricated	Water	Hydrogen or helium compression, Specialty gas systems
5450	3	414	150	850	Lubricated	Air	ndustrial gas networks, Continuous duty operations
5460	2	414	300	1500	Lubricated	Water	Gas pipeline boosting, Large autoclaves

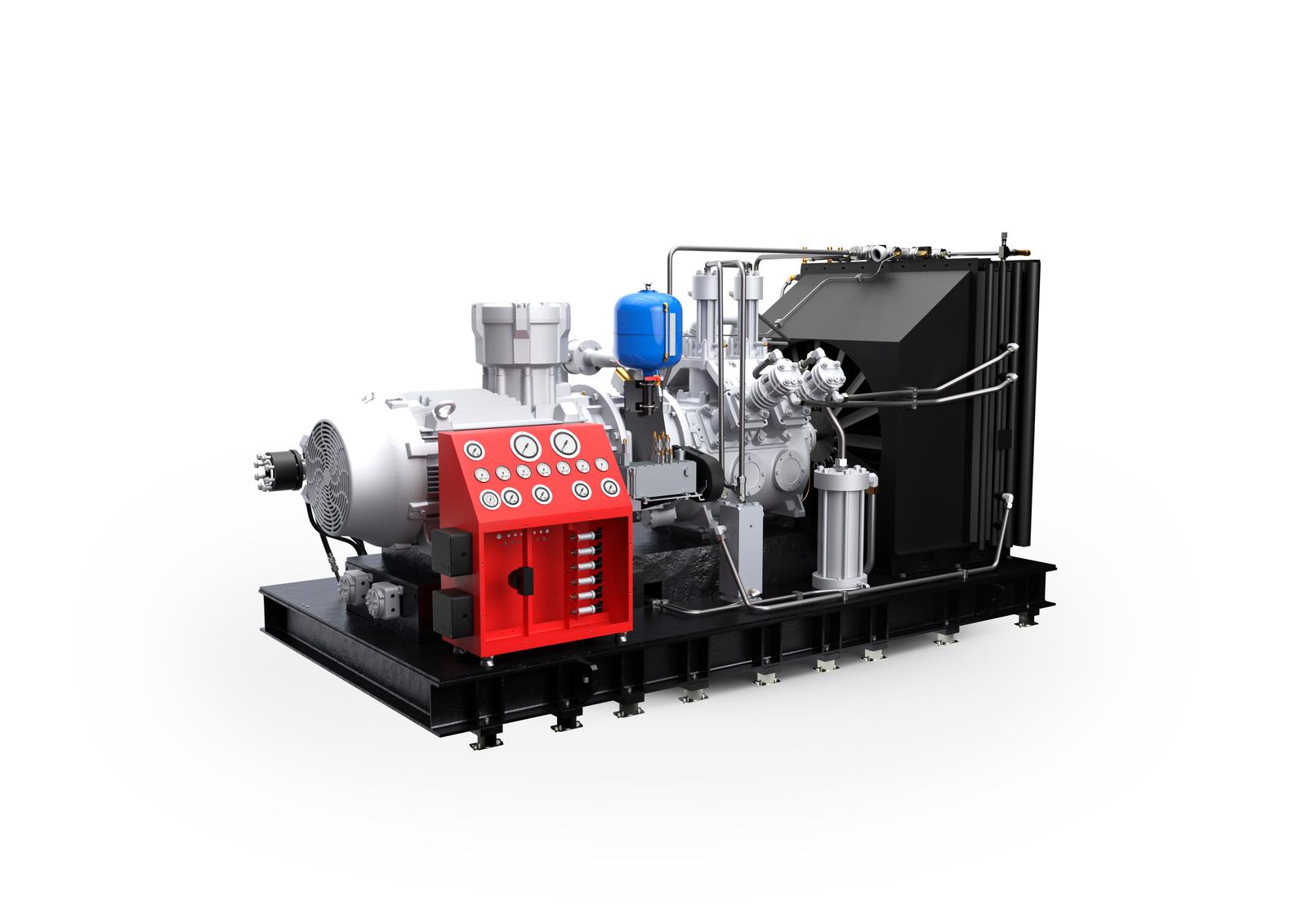

5470	3	414	300	1128	Lubricated	Air	Mission-critical gas compression, Custom-engineered systems

Direct Drive
Model	Height (mm)	Width (mm)	Lenght (mm)	Weight (kg)
5404	505	530	361	36
5405	505	530	361	39
5405e	520	623	380	40
5407	685	559	483	77
5409	697	714	515	129
5417	770	880	1560	750
5420	770	880	1560	750
5437	1090	1200	1820	1500
5442	1597	1505	2484	2750
5450	1696	1797	2888	4000
5460	1729	1820	2576	3000
5470	1729	1820	3300	7000

Belt Drive
Model	Height (mm)	Width (mm)	Lenght (mm)	Weight (kg)
5404	-	-	-	-
5405	-	-	-	-
5405e	-	-	-	-
5407	-	-	-	-
5409	-	-	-	-
5417	770	1290	870	740
5420	770	1290	870	750
5437	1090	1700	1060	1600
5442	1867	2620	1955	3300
5450	-	-	-	-
5460	-	-	-	-
5470	-	-	-	-

Reavell 5404 Compressor

3 stage air cooled.
Max Flow: 8 m³/h
Outlet Pressure: Up to 350 barg
Power: 4 kW

This compressor can manage a wide variety of gases. Typical gases are industrial air, breathing air, nitrogen.

No lifting gear required for top end service.

Reavell 5405 Compressor

3 stage air cooled.
Max Flow: 11 m³/h
Outlet Pressure: Up to 350 barg
Power: 6 kW

This compressor can manage a wide variety of gases. Typical gases are industrial air, breathing air, bio-gas, helium, hydrogen, methane, natural gas, nitrogen, heliox and sludge gas.

Reavell 5405e Compressor

3 stage air cooled.
Max Flow: 17 m³/h
Outlet Pressure: Up to 350 barg
Power: 8 kW
Easy to service

This compressor can manage a wide variety of gases. Typical gases are industrial air, breathing air, bio-gas, helium, hydrogen, methane, natural gas, nitrogen, heliox and sludge gas.

Reavell 5407 Compressor

4 stage air cooled.
Max Flow: 27 m³/h
Outlet Pressure: Up to 414 barg
Power: 11 kW

This compressor can manage a wide variety of gases. Typical gases are: breathing air, industrial air, bio-gas, helium, hydrogen, methane, natural gas, nitrogen, heliox and sludge gas.

High efficiency intake filter and silencer with replacable elements.

Reavell 5409 Compressor

4 stage air cooled.
Max Flow: 44 m³/h
Outlet Pressure: Up to 414 barg
Power: 19 kW

This compressor can manage a wide variety of gases. Typical gases are: breathing air, industrial air, bio-gas, helium, hydrogen, methane, natural gas, nitrogen, heliox and sludge gas.

High efficiency intake filter and silencer with replacable elements.

Reavell 5417 Compressor

4 stage air cooled.
Max Flow: 44 m³/h
Outlet Pressure: Up to 414 barg
Power: 19 kW

This compressor can manage a wide variety of gases. Typical gases are: breathing air, industrial air, bio-gas, helium, hydrogen, methane, natural gas, nitrogen, heliox and sludge gas.

Compact skid designs to optimise available installation space

Reavell 5420 Compressor

4 stage water cooled.
Max Flow: 84 m³/h
Outlet Pressure: Up to 350 barg
Power: 37 kW

This compressor can manage a wide variety of gases. Typical gases are: breathing air, industrial air, bio-gas, helium, hydrogen, methane, natural gas, nitrogen, heliox and sludge gas.

Suitable for direct cooling by fresh or sea water or from an integral closed radiator circuit system.
